High-NA Hard Sell: EUV Multipatterning Practices Revealed, Depth of Focus Not Mentioned

In High-NA EUV lithography systems, the numerical aperture (NA) is expanded from 0.33 to 0.55. This change has been marketed as allowing multipatterning on the 0.33 NA EUV systems to be avoided. Only very recently have specific examples of this been provided [1]. In fact, it can be shown that double patterning has been implemented for EUV in cases where DUV double patterning could have sufficed.

What a Higher NA offers

The increase in NA allows more diffraction orders or a wider range of spatial frequencies to be used for imaging. Having more diffraction orders for the same image allows brighter, narrower peaks, as shown in the example of Figure 1.

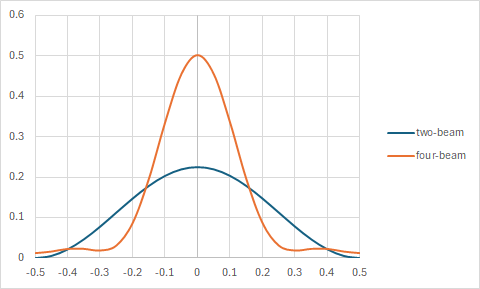

Figure 1. Four diffraction orders produce a brighter, narrower peak than two diffraction orders for the same quarter-pitch input line pattern. The NILS is improved for the sharper peak.

The sharper peak means the normalized image log slope (NILS) is better, so the stochastic effect of shot noise in the photon absorption won’t be as severe. Consequently, a directly printed image would be more likely to be degraded for 0.33 NA compared to 0.55 NA.

Current EUV Uses Multipatterning

To keep the shot noise low enough to keep the single 0.33 NA exposure, the dose would have to be increased to a point where throughput or resist loss would be a detracting issue, e.g., > 100 mJ/cm². On the other hand, if the 0.33 NA pattern were split into two separately exposed portions (Figure 2), each one would have a denser range of spatial frequencies due to wider separations between features, which will improve the NILS.

Figure 2. Random 36 nm via pattern (taken from [1]) split into two portions for 0.33 NA EUV double patterning; each color represents one of two masks. DUV double patterning can follow the same split for this case.

Interestingly, in this case, the minimum 100 nm distance means DUV can also be used with double patterning for the same pattern. This is consistent with an earlier finding that DUV and EUV double patterning may be overlapped due to the impact of stochastic effects [2].

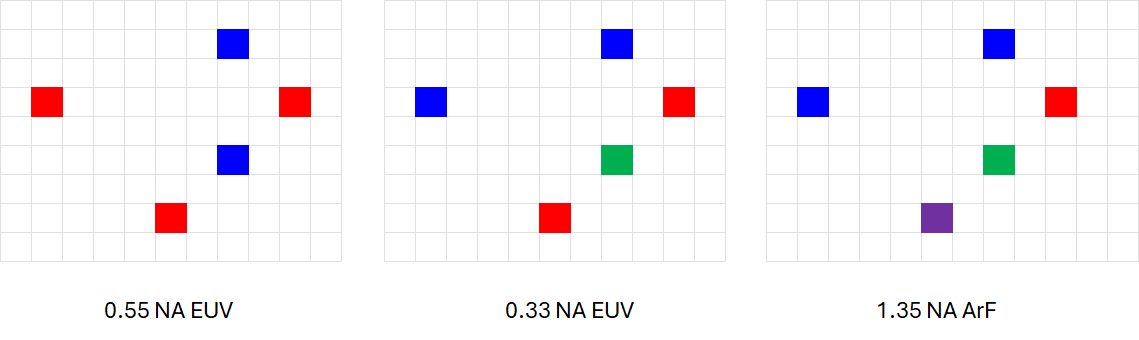

Furthermore, if the pattern of Figure 2 were scaled down by a factor of the NA ratio (0.33/0.55), so that the via size becomes 36 nm x 0.6 = 21.6 nm, the same situation will apply to the High-NA case as well, since the spatial frequency range (normalized to 0.55 NA) is now reduced to the same as previously for 0.33 NA. This means we should expect double patterning for High-NA EUV, triple patterning for low-NA EUV, and quadruple patterning for DUV (Figure 3).

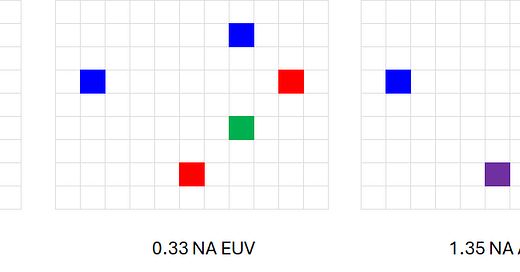

Figure 3. Different multipatterning scenarios for the 0.6x scaled pattern of Figure 2.

On the other hand, it can be noted that via patterns can conform to a diagonal grid [3], which would enable DUV/low-NA double patterning or High-NA EUV single patterning for location selection if the vias are fully self-aligned (Figure 4).

Figure 4. Applying via diagonal grid location selection to the pattern of Figure 3 simplifies the multipatterning (double patterning for DUV/Low-NA EUV, single patterning for High-NA EUV).

High-NA Depth of Focus Challenged by Resist Thickness

A fundamental consequence of having a wider range of spatial frequencies in a larger numerical aperture is that there is a wider range of optical paths used in forming the image. Each path corresponds to an angle with the optical axis. At the wafer, the wider range leads to the higher spatial frequencies getting more out of phase with the lower ones, causing the image to lose contrast from defocus. This is visualized in Figure 5.

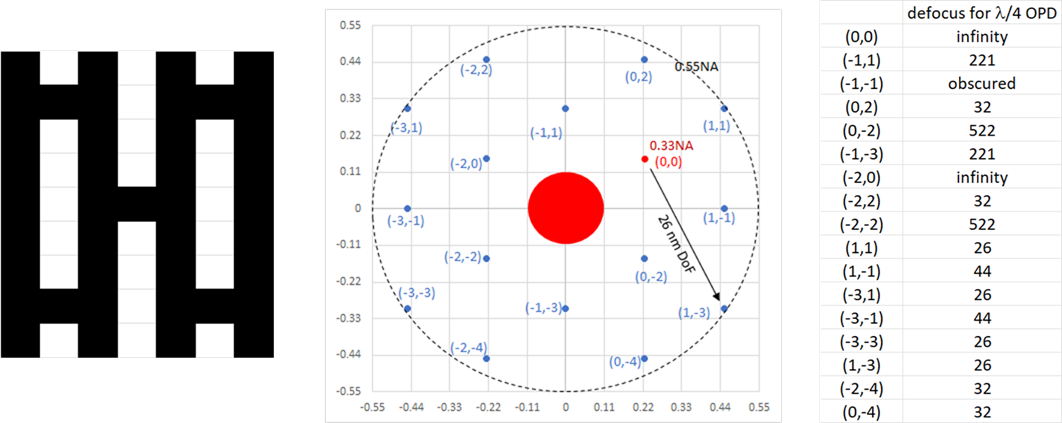

Figure 5. 30 nm pitch with line breaks presents a wide range of diffraction orders with High-NA, leading to a relatively limited depth of focus.

As Figure 5 shows, this is particularly bad for line breaks, where the tip-to-tip distance needs to be controlled. Likewise, it would apply to the corresponding line cut pattern. The depth of focus reduction applies generally to patterns with wide spacings between features such as the random via pattern of Figure 2. Figure 6 shows that even 15 nm defocus is enough to significantly affect a 40 nm pitch line pattern, due to four diffraction orders being included by a 0.55 numerical aperture as opposed to two diffraction orders for a 0.33 numerical aperture.

Figure 6. A 40 nm pitch line pattern is significantly affected even with 15 nm defocus, due to more diffraction orders being included with 0.55 NA.

To preserve the image uniformity as much as possible through the resist thickness, the resist thickness needs to be at most as thick as the depth of focus. A depth of focus < 30 nm for High-NA means resist thickness has to be < 30 nm, which may further experience 50% resist thickness loss [4]. Such a thin retained resist layer also would have absorbed very little EUV, leading to even greater absorbed photon shot noise and greater sensitivity to electrons from the underlayer [5] as well as the EUV plasma [6].

Thus, though obviously not mentioned in the marketing, it is reasonable to expect that High-NA EUV exposure cannot provide enough depth of focus for a reasonable resist thickness, and any future Hyper-NA (at least 0.75 [7]) would be even worse.
